Piaggio Genuine Stator Plate Assembly BV 200 828135
Piaggio Genuine Stator Plate Assembly BV 200 828135
Low stock: 1 left
Couldn't load pickup availability
Product Description

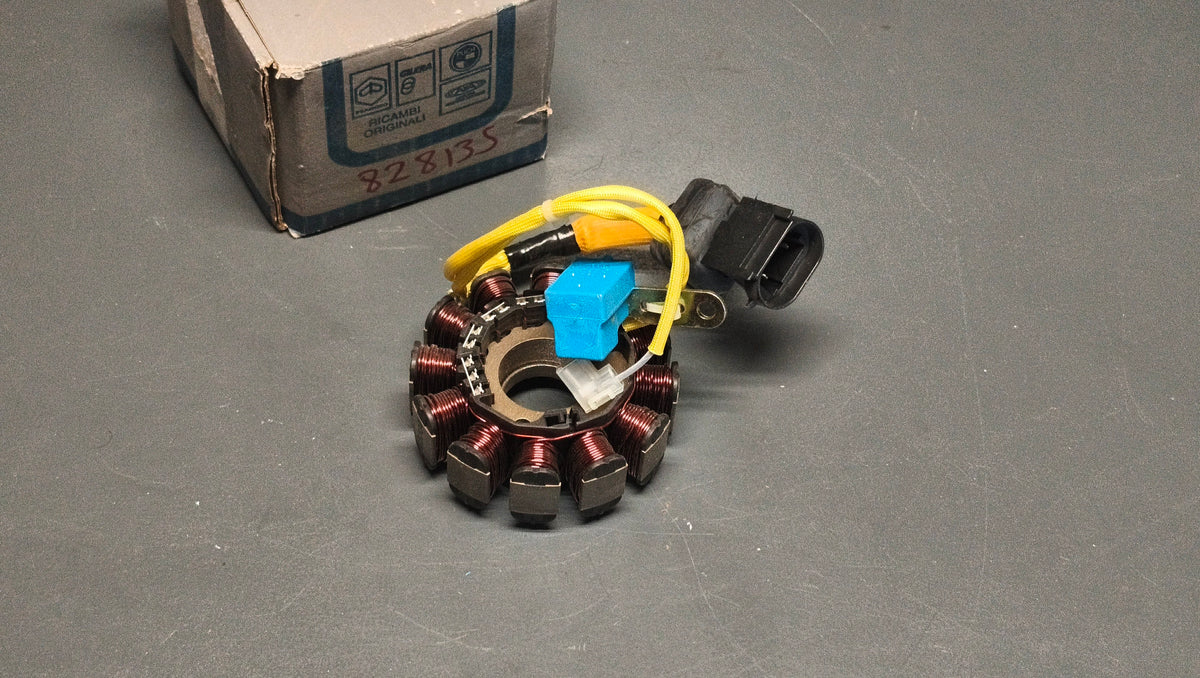

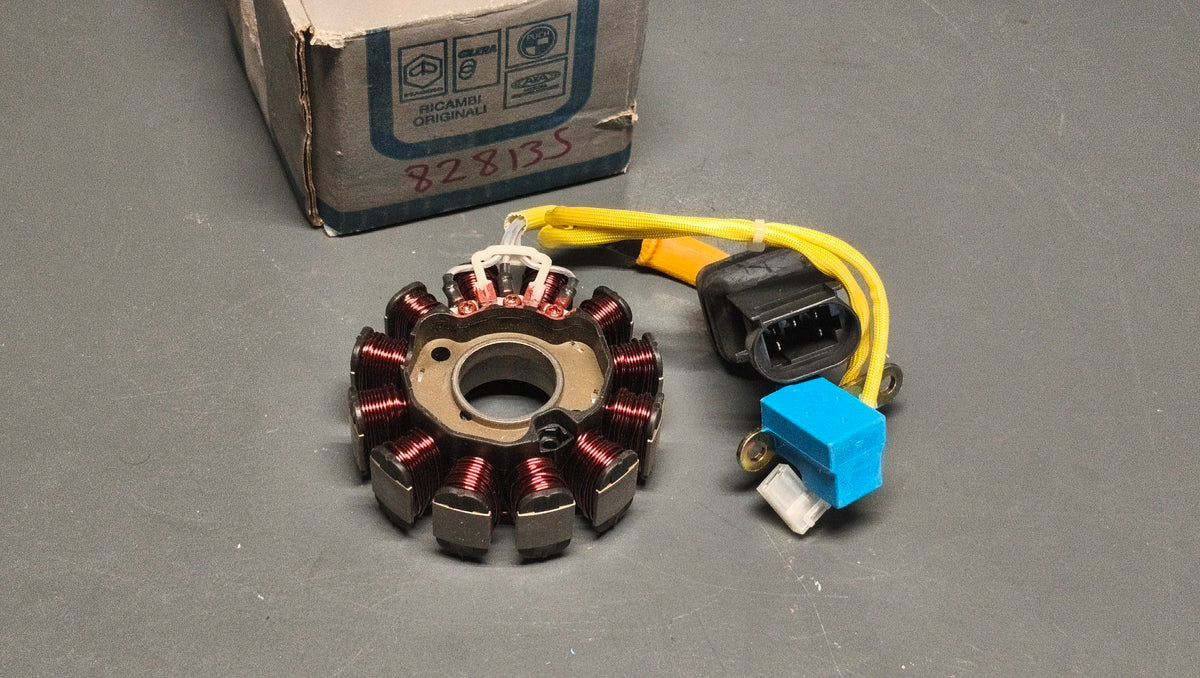

Piaggio Genuine factory 12-pole generator stator plate assembly engineered for carbureted Leader engine variants equipped with an immobilizer. Precision-wound copper coils mounted on a heavy-duty steel backing plate, complete with wiring harness insulation, rubber crankcase grommet, and weather-sealed connector plug. Designed to supply reliable electrical power for ignition firing and battery charging circuits.
Vehicle Compatibility
Verified catalog fitment for mid-displacement carbureted four-stroke scooter platforms:
| Make | Model | Chassis / Engine Variant | Model Years |
| Piaggio | BV 200 |
200cc 4-Stroke Liquid-Cooled Leader Engine |
2003–2005 |
| Piaggio | Fly 150 |
150cc 4-Stroke Leader Engine (Carbureted) |
2007–2012 |
| Piaggio | Typhoon 125 |
125cc 4-Stroke 2V E3 Leader Engine |
2011–2019 |
| Aprilia | SportCity 125 / 200 |
125cc / 200cc 4-Stroke Liquid-Cooled |
2004–2010 |
| Derbi | Boulevard 125 / 150 |
125cc / 150cc 4-Stroke Leader Engine |
2002–2007 |
Fitment & Technical Details
Direct factory OEM replacement electrical stator plate. Disconnect the negative battery terminal, remove the cooling fan, outer shroud, and left crankcase flywheel cover. Use an appropriate flywheel puller tool to unseat the magnetic rotor without damaging the crankshaft taper. Unbolt the legacy stator 828135 (or updated 584690) from the casing and unplug the wiring connector. Install the new assembly, aligning the pickup gap and backing plate screw holes precisely with the factory case alignment marks. Apply a drop of medium-strength threadlocker (Loctite 243) to the backing plate screws and torque them to specification (10 Nm). Route the harness cleanly, seal the rubber crankcase grommet with high-temp RTV silicone to prevent oil weeping, and reassemble.
Important: Please ensure the part number matches your motorbike before purchasing. If you have any questions about the part or its compatibility, feel free to contact us. We’re here to help!
At Dmmotorcycles, we’ve specialized in vintage and vintage sports motorcycles and parts directly from Japan since 1998. We stock a wide selection of rare genuine and high-quality aftermarket parts and continually update our inventory to meet growing demand.
Looking for a specific part? Don’t hesitate to ask! We may have it in stock even if it’s not listed online. If not, we’ll do our best to source it for you.
We’re also happy to provide guidance on installation and offer excellent after-sales support to ensure your satisfaction.
